week 14 Industrial day

                                                         ~ASsalamualaikum to all reader~


          This week's long-awaited day of project presentations today. initially when we went into the hall feeling increasingly pounding as the project will make a presentation in front of the assessors. on this day of the contests final year project.

          A day before the show we met with advisors projects to show our project works well whether or not, and God bless our great gentlemen and madam naszariah message so confident and do not be afraid time will show. so we took advice as inspiration.

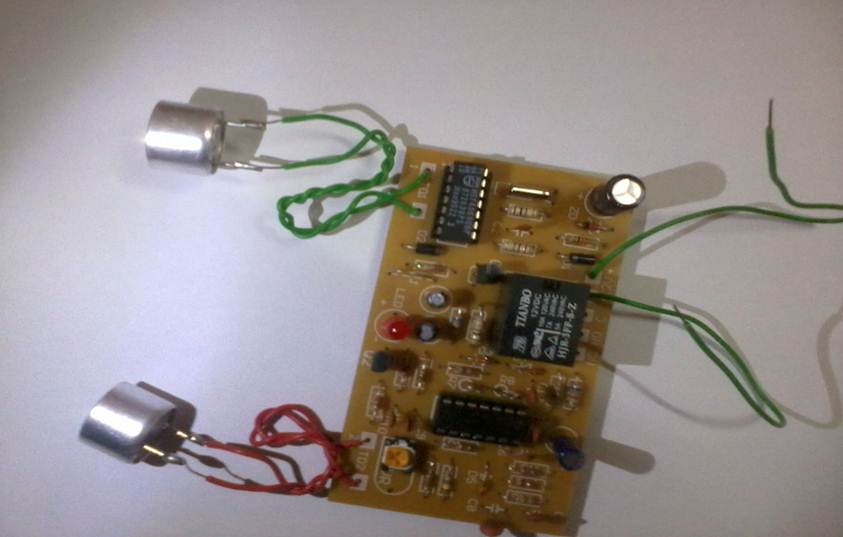

The above picture is of our projects home security alarm. so quite simple. but we are just thankful that they can afford.

this also we produce a few pemplate for our fyp

Backup Video

At above the project was our poster.It also quite simple very unattractive. but we are also thankful.And  also backup video for project if project not function while viva.

After the presentation of our projects provide the assessors have to wait to come in our place. time fear grows stronger. even like that we could take a group photograph to remember.

Everyone is busy making preparations for final year project.

between friends who could visit our.

The picture below it is the assessors we which assess we quite long and questions which were asked the so challenging also but Alhamdulilah we be able answer the with good.

                After been evaluated by the assessors we are relieved and feel a little happy end projects come to an end. although we did not list the projects in 20th of the best projects but we are thankful and grateful to our advisors Naszariah bt Mohd Noor gentlemen who helped us in many generations of the end of the project. do not forget also to our friends and family too much to give encouragement get to this point. Thank you all

week 13 : poster and pemplete

                                                      ~ Assalamualaikum to all reader ~

           Suspense turns getting abusing day ahead. This week we need to see Madam Naszariah supposed to receive further instructions what we do so we have to be prepared. But madam told to our to see at monday week 14. So we just follow up.

            we ask other friends they had completed their projects only to wait for the time to come. This week we are supposed to prepare a poster for Industrial Day the show at Gemilang Hall.

Wish us succesful at the day ..Insyallah ameen..^_^..

week 11 and 12: Prepared draft Report Fyp Project

                                            ..Assalamualaikum to all reader..



         For two weeks we must prepared sent draft report to our supervisor Madam Naszariah.
there are also meeting this week to provide a description of the report. So , we just follow instructions from our madam to  prepared the draft  report and many correction we have and we must correct with very well before sent the final report.

Week 10 : Combination circuit

                                                      ..Assalamualaikum to all reader...

After done our troubleshooting for our circuits,now we are going to combine our circuit in this week. The picture below shown our circuit combination process. We hope that our circuit will function as far as possible. Wish me luck!

This time we get one trouble because we want do the combination to ic timer but after we truobleshoot. The led still not funtion very well..

But we will try do the best for our Final Year Project until two circuit function with very well..
May Allah bless Us Insyalllah amin..^_^..

Week 9 : Trobleshooting circuit

Looking nice after we rub with sand paper.

After we eching go the next step is troubleshoot..

At the early time we do the troubleshoot because is not operate but after we doing many time and we get detect the trouble. soldering to LED is not tidy circuit path blocked.

And Alhamdulilah finally we get the solution we can solve the problem very well for ultrasonic motion..^_^..

 Thank you a lot to everyone family,our friends exspecially to advisor madam naszariah because helps support to us.^_^..

Week 8 : Contruct Housing and Circuit..

                                                      ... ASSALAMUALAIKUM...

            For this week, my partner and I was starts doing our circuit construction.Firstly we need to design mini housing and  we need also to construct it on the breadboard first in order to make a testing to make sure the circuit will be function smoothly.

1.Design Housing:



We just take from housing senior last semester and just only  modify and makeup until unique..^_^..

We also use any tools for design this houses,,

2. PCB circuit design

         firtsly we cut the pcb board follow the real size so easy to soldering component on board.Then, we doing step by step in hostel using the any tool what we have..

 We rub with sand paper remove bits of dirt on board. Then we print pcb on photopaper. best woo .

After that.we rub the pcb board with iron until stick.

And finally, we doing the eching pcb board ulthrasonic motion and circuit ic time..

Week 7: Circuit Design

Assalamualaikum..

      This week, we have doing a pre-label of our circuits. we start with a description for our project's block diagram. The picture that we have upload below is our block diagram. we combined two circuit Ultra Sonic motion and Ic timer..

Block Diagram

                Reffering the data sheet we using the filter to analyzed the wave signal that being receive by the ultrasonic receiver circuit.Then Op-Amp- was used to amplify the current from the filter.Relay received output current from Op-Amp and react as alarm circuit switch to on ar off.After that, HEX Inverter -reflected wave was detected and receives by the ultrasonic sensor receiver. 40KHz crystal- was generated by the 40 kHz crystal with the help of the HEX Inverter.

              To produce the output, we have a little bit of problem, we had a confuse either we want to produce our output using speaker police siren or any others speaker. So for the output, we need to hold it process first, and we will decide it after having a discussion with our supervisor, Madam Naszariah. and her told to us the important is not in force we must understand that our projects do..

Week 6 : Off to Jalan Pasar

                                                   Assalamualaikum and hello guys.

                   Before we proceed to our project progress, I want to apologize to all of the readers especially to my supervisor for not updating my blog for a few weeks. because we just learned from our friends.But we try to meet supervisor for update the our project progress. As we mention before Our project will consist two circuit :

• ULTRA SONIC MOTION DETECTOR

• IC TIMER

       We would like to show you a part of component's that we bought at Jalan Pasar. I did not put all the component in today's entry due to the component that still not been purchased.

         We search every single place at Jalan Pasar, but we are only get a few of components. It is because we  are arrived late from our estimation time.  InshaAllah, we will go back there to get all next weekend ..



         This is the one of our receipt, another receipt because of the several technical problems. InsyaAllah,we will upload it in next entry..



Week 5 : Our Components ..

                                    Assalamualaikum & Have a nice day, readers !

           Alhamdulillah, Now we discuss with supervisor and show our project progress to her. May Allah give   forgiveness and a lot of mercy for us, Insya-Allah..

           After doing some research and discussion about our project, we are able to list down our component that we need in our project. This is require us to go to Jalan Pasar, Kuala Lumpur to obtain the necessary item, I mean an electronics component, and all of the devices that we need for our project.

For this project, we need to construct two circuits

 ULTRA SONIC MOTION DETECTOR:

1.Resistor (33ohm,1M,2.2M,1K,6.8K,470K,10K,100K)
2.Capacitors (330mF,1mF,4.7mF,10mF,0.001mF,0.01mF,0.1mF,30pF)
3.IC1 CMOS 4069
4.IC2 TL 084
5.Q1 Q2 IN 4001 until 4007
6.D1 D2 IN 4001 until 4007
7.D3,D4,D5 IN 4148
8.Zener Diode 400 mW
9.VR Trimmer Pot (preset) (10,15,20,22kohm)
10.K1 Relay DC12V
11.LED 5mm
12.XTAL tuning fork crysstal 40KHz
13.TD1 40KHz Ultrasonic transducer (Transmitter,40T)
14.TD2 40KHz Ultrasonic transducer (receiver,40R)


IC TIMER:

1.Resistors (10K,5.6K,5.1K,100K,680 Ohm)
2.8-pin IC Socket-1pc
3.D1 1N4148 or 1SS133
4.D2 Rectifier Diode 1N4001,1N40002
5.Electrolytic Capacitors (47mF,2.2mF,330mF)

6.Ceramic Capacitors (0.01mF,0.022mF)

7.Q1 NPN Transistors (2SC1815,2SC945)

8.LED1 5mm
9.VR1 1M ohm
10.S1 Range
11.S2 Start'
12.S3 Reset
13.RLY- Relay DC9V
14. IC1 8 Pin Integrate Circuit(Timer IC)

Week 4: Our Greatest Plan

                                    Assalamualaikum and hello to all reader...^_^..

On this week we are starting for doing the draft report. because our supervisor want to see  draft report early..but actually  we have to prepare plan to make sure our vision will accomplish on time.So  using Microsoft project software, we are creating a Gantt Chart in order to ensure that our project construction progress will be proceeded smoothly.


                                  Our Gantt Chart planner are shown as below.

We will try to follow the procedure as best as we can. So that will help us to complete our project on time. But in the same time we also do it instruction by supervisor madam Naszariah Mohd Noor May ALLAH Bless our project progress..^_^..

week 3: HOME SECURITY ALARM..^_^..

                            IntroduCtion

  MODEL





  Our "HOME SECURITY ALARM " consist of a combination of a two circuits ultra sonic sensor and ic timer circuit.We are approach to make a changes in that project especially for its function.

          Ultrasonic circuit is to detect any movement especially detect intruders and alerts will be sent to the timer circuit to trigger the siren in a timely manner. In our ultasonic circuit using a relay to trigger movement and CMOS IC and TL 084 as converters and amplifer. We chose the time constant circuit with a relay to trigger the siren off.

          In both are use the power supply 12VDC for Utrasonic and 9VDC for timer circuit based on the properly DC circuit. With the support of the appropriate components of both these circuits will function as sensors to detect intruders. Siren used was a police siren that use 12VDC to produce a loud sound to be heard by the neighbors and people will invasion.



week 1 and 2 : First Of ALL..^_^..

Assalamualaikum w.b.t ..

Alhamdulillah, Praise Be To Allah because of His great mercy for giving us a chance to completing our studies till our last semester majoring in Engineering Technology in Electrical and Medical Electronics.

          First of all, we would like to thanks to all those who are giving us a lot of guidance in order to complete our FINAL YEAR PROJECT in semester 1/2013, especially to our supervisor, Madam Naszariah binti Mohd Noor.

          Not forgotten, thanks to the whole of family member's especially our parents, our friends, and all the person who are willing to help us in order to complete this project.

May this blog will give you a little bit idea and an information for your future knowledge.
Ameen Ya Rabbal Alameen...

         Before we must update process what we has to do it using the blog  we want to introduce ourself because for this project fyp.

• Name  : MUHAMMAD HANAFI BIN AZMAN

• No. IC : 920816-08-5855

• Date of birth : 19/2/1992

• Place of birth : HEALTH CLINIC KG.GAJAH, SILVER

• Addres : BLOCK C-E3 , BALAI POLIS CENTRAL, LEBUH     CARNARVON , 10100, GEORGETOWN , PENANG

Position: Prayer Secretary Us (2013)

                 - Exco ISI Welfare and Special Assignments (2012)        -  Exco special tasks CCGC(2012)

• Education: SPM(SMT SERI MANJUNG)     .

• Course and semester :  Diploma Engineering Technology  Electrical and Electronic (UNIKL BMI),

• Skill : troubleshoot circuit electronics & programing , wiring electrical, maintainance electrical system in building.

• Father:  AZMAN BIN HJ AHMAD

• Mother:  NAZIRAH BINTI ISMAIL

• Allergies or illness (if there)  : SEAFOOD ALLERGY

• Favorite food:  batik cake

• Favorite beverage : cendol glutinous

• Hobby : READ, STUDY, ARGUE, BOWLING (SPORTS)

• Ambition: ENTREPRENEURS AND STILL BE A POLICE OFFICER

• Sibling: 8 PEOPLE, CHILDREN TO -3

• Occupation father : POLICE

• Occupation mother : kindergarten assistant

• Religion  : Islam ,

• Status:  In marriage ... Who will I be single AGAIN...

• Dream : want to Makkah before marriage

• Name  : MUHAMMAD YAMIN BIN MOHD SHAHROM

• No. IC : 930509-14-5749

• Date of birth : 9/5/1993

• Place of birth : TREATMENT CENTRE ISLAMIC FEDERAL TERRITORY OF KUALA LUMPUR.

• Addres : NUMBER 117 jalan TTJS FASA 5 TAMAN TUANKU JAAFAR POSKOD 71450 SUNGAI GADUT SEREMBAN NEGERI SEMBILAN.

• Education: SPM(SMT PORT DICKSON)     .

• Course and semester :  Diploma Engineering Technology  In Medical and Electronics (UNIKL BMI),

• Skill : Using Basic Adruino,and programming basic wiring electrical, using basic medical device,

• Father:  MOHD SHAHROM BIN JAAFAR

• Mother:  SALINA BINTI MOHD SALLEH

• Allergies or illness (if there)  : SEAFOOD ALLERGY

• Favorite food:  ROJAK & chicken fried rice

• Favorite beverage : MILO ICE

• Hobby :  SPORTS BASKETBALL,CYCLELING,ONLINE

• Ambition: TRAINERS Islamic scholars

• Sibling: 4 PEOPLE TO-2

• Occupation father : POLICE CLERK

• Occupation mother : FINANCIAL MANAGER OF TNB

• Religion  : Islam ,

• Status: single people who live to find parents and subside pleased divine

• Dream : As far as want to send FAMILY WE WERE GONE Hajj or Umrah..^_^..
